Maximize Your Application’s Ability to Work with Engineering Models & Data



Build engineering software with the fastest and most interoperable tools available. Learn more in this recent e-Book produced by CIMdata.

Kubotek Kosmos® 3D Framework is an advanced set of multi-platform software components which support development of specialized design applications, CAD/CAM, CMM, and CAE utility programs, and high-fidelity movement of data between engineering software programs.

Your domain expertise backed with precise engineering data

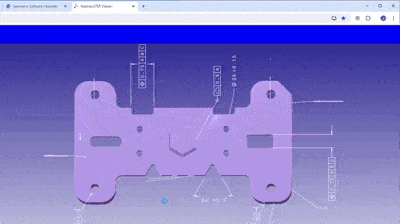

  • Supports 3D solid models with associative GD&T manufacturing information, surfaces, wireframe, construction geometry and 2D drawings with GD&T manufacturing information

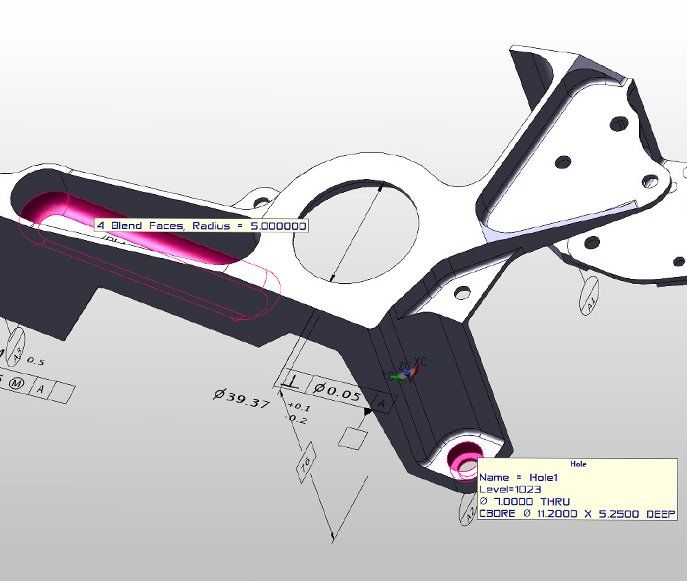

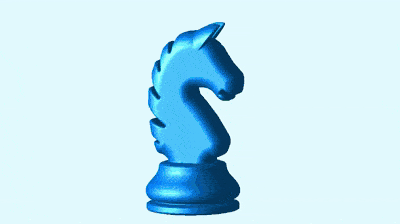

  • Includes automatic geometric feature recognition such as machined holes, fillets/rounds and chamfers
  • Powerful variable precision that fully supports models ranging in size from millions of miles to microns long
  • Includes manifold and non-manifold topology and multi-dimensional bodies (zero dimension through three dimensional)
products-page-kosmos-mech-draw

Reliably exchange data with all major MCAD databases

  • Unique interoperability data architecture minimizes translation by preserving complex geometry definition structures native to each engineering database

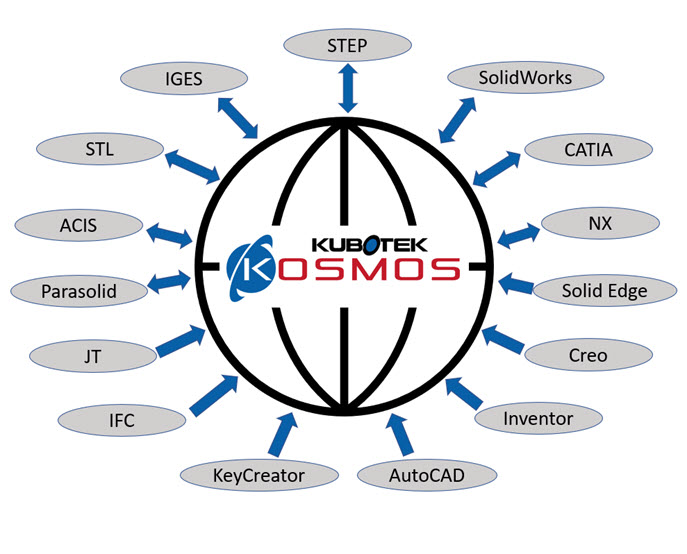

  • Support available for standard STEP, IGES and VDA files, neutral ACIS SAT, Parasolid X_T, JT, and STL files, and proprietary files from Dassault CATIA and SolidWorks, Siemens NX and Solid Edge, PTC Creo and Pro/E, and Autodesk Inventor and AutoCAD
  • Innovative variable precision system provides a simple, consistent solution to the problem of data coming from different CAD databases which use different modeling precision
Framework File Format Support

Maximize your application performance

  • Written from the ground up with multi-threading in mind with zero global and static variables
    • This supports taking full advantage of multiple processors by operating mutex-free, eliminating a significant bottleneck required by older kernels to which thread-safe support was an added feature
  • Advanced math algorithms reduce the number of mathematical operations required to calculate many solutions
    • Example: the intersection of two surfaces
  • Small file size of the code libraries means a dramatically smaller memory footprint, enabling larger datasets
  • Optimal condensed format for database save and restore
artistic-multiple-processor

Easily expand to new platforms and markets

  • Libraries are supported and tested on Windows, MacOS, Linux, and Android providing the potential for operation on mobile devices
  • Complete Unicode support allows for text strings in most of the world’s writing systems
  • Compatibility with .NET (Visual Basic, C#, etc.) and ELK Scheme allows your team to quickly integrate with existing code
  • Python scripting allows your partners and users to extend your applications
products-page-kosmos-collage

Maximize the productivity of your development team

  • Automated run-time UI dialogs reduce time creating and maintaining separate resource files
  • Comprehensive trace-ability features like built-in memory tracking with allocation line number, a pointer-free API, and bi-directional attribute-object lookup
  • Functional sample viewer programs (wxWidgets and Qt based) for use in initial testing or as the base of a quick application
  • Utilize proven components Kubotek delivers to leading aerospace manufacturers in end-user 3D model audit programs
  • 100% automated test coverage, weekly releases, and fast turn-around for fixes

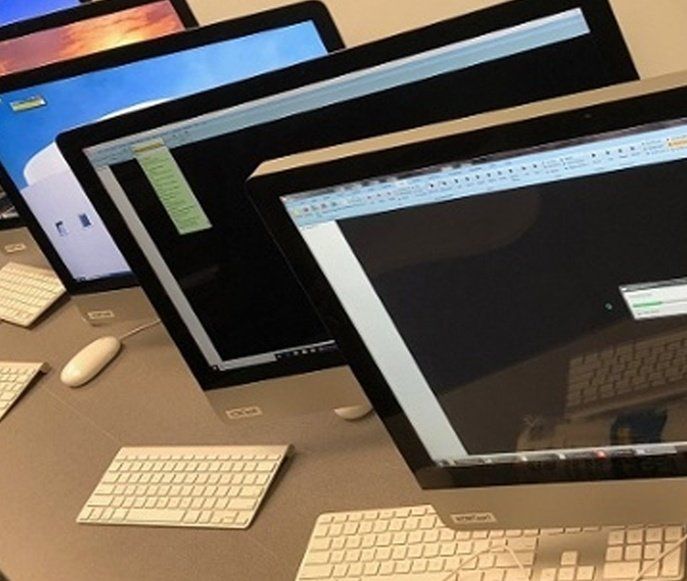

Automated Test Machines

Modular Components

The Kubotek Kosmos architecture allows customers to flexibly license only the modules they need for a project.

  • KCM Kosmos Core Modeler kernel library toolkit

    Kosmos Core Modeler (KCM®)

    Complete and universal 3D engineering database

  • 3D modeling geometric modeler

    Modeling

    Boundary representation modeler

  • IGES STEP STL ACIS Parasolid DXF Datakit

    Translation Components

    STEP/ACIS, IGES, Mesh (STL, OBJ, INP)

    VDA, JT, Parasolid

    Native CAD read and write

  • OpenGL HOOPS Graphics engine bridge

    Graphics

    OpenGL hardware acceleration and memory,

    shading, custom line patterns

Core Features

  • Geometry and topology definitions
  • KCM database save and restore
  • Undo/Redo
  • STEP or SAT read and write
  • Feature discovery/recognition
  • Faceting
  • Ray firing
  • Model evaluators/verify
  • Assembly discovery
  • Math function libraries
  • Usage statistics
  • License management

Modeling Features

  • Solid primitives
  • Curves
  • Point clouds

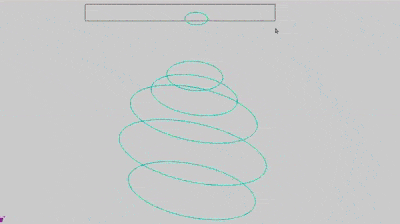

  • Sweeping
  • Lofting
  • Optic surfaces
  • Curve/surface trimming
  • Profiles/Planar cover
  • Intersectors/Booleans
  • Surface blending
  • Precise hidden line
  • Model repair/simplification

Learn More

Find out what Kubotek Kosmos components can do to improve your engineering applications



Request Information
